ALLRIS Standard
Versatile Single-Camera
Inspection & Sorting System

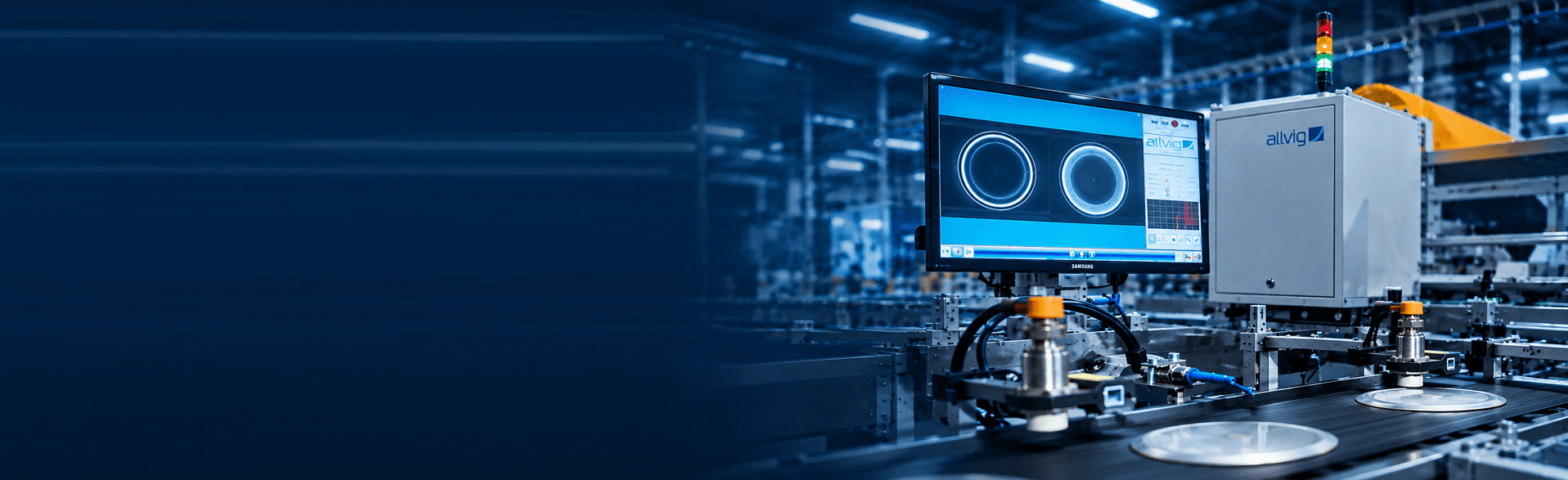

ALLRIS Standard is a flexible optical inspection system designed for reliable automated quality control in industrial production. Combining our proprietary ALLRIS software with application-specific cameras, lighting and modular standard hardware, it provides high inspection performance in a cost-efficient configuration. The system uses a single camera and can be integrated into existing production machines or configured as a standalone inspection solution.
Technical Specifications
Base Configuration
| Parameter | Specification |
|---|---|
| Camera configuration | Single camera, Mono |
| Inspection areas | Lid top surface and curl |
| Product diameter | 33–155 mm |
| Inspection speed | Up to 1,500 products/min |
| Camera resolution | 1.2 MP |
| Product feed | Separated products |
| Sorting function | Optional, application-specific |
Specifications refer to the base configuration and can be adapted to individual customer requirements.
| Component Group | Description |
|---|---|
| Control Cabinet & Power Supply | Industrial control cabinet, air-conditioning, UPS and electrical mounting components |
| Industrial Computing | Industrial PC with processing, camera and lighting control components, running Windows 11 Pro (64-bit). |
| Camera & Optics | Monochrome industrial camera, lens and data cables |
| Illumination System | Inspection light box with integrated lighting and four-channel lighting controller |
| Sensors & Product Tracking | Photoelectric and inductive sensors, rotary encoder and associated accessories |
| Sorting & Signaling | Ejection valve and signal tower |
| Operator Interface & Software | Monitor, mounting bracket, keyboard, mouse and proprietary ALLRIS software license |
ALLRIS Standard – Starting Price
From € 25,400
Excl. VAT. Final pricing depends on the selected configuration and application requirements. Optional features are quoted separately.
Inspection Features & Customization
ALLRIS Standard can be configured to meet specific inspection tasks and production requirements. Its modular architecture allows additional hardware components and software functions to be integrated according to the application.
- Application-specific camera and lighting configurations
- Additional inspection criteria and software functions
- Product tracking and automatic rejection of defective products
- Communication interfaces for integration into existing production lines
- Customized mechanical integration
Double-Snap Inspection
With the Double-Snap function, the same product is captured twice under different lighting conditions within a single inspection cycle. This enables the detection of different defect characteristics and improves inspection reliability.
Double-Snap is an available feature of ALLRIS Standard and can also be used in double-system configurations.
Optional Sorting & Rejection
ALLRIS Standard can be equipped with an optional sorting and rejection function. Defective products are identified during inspection, tracked along the production line and automatically removed at the designated rejection station.
The sorting system can be adapted to the production process and the customer’s specific requirements.
Looking for a specific inspection solution? Contact us to discuss your application and find the most suitable configuration
